Kemet Fixing Systems (Mounting methods for Polishing Pads)

Kemet have a variety of mounting methods suitable for all types of grinding and polishing consumables

Non adhesive grinding papers

Non adhesive papers can be used with a paper holding ring. This clamps the papers in place and allows for easy and fast changing.Paper rings available to suit 200, 250 and 300mm diameter platens

Paper Ring Diameter Code
200mm 345142
250mm 345132
300mm 345112

Self adhesive grinding papers

Self adhesive consumables can be used in 3 different ways

Option 1: The self adhesive disc can be fixed directly to the plate.

Option 2: The Kemtak disc is used with Bramet self adhesive grinding papers. It can be mounted onto the machine platen or onto the KMS disc if it is being used with a magentic platen. The plastic barrier film on the Bramet grips the Kemtak non-skid surface so that the adhesive is not used. This makes it faster and cleaner when changing from one grit size to another (Fig 1).

kemtak fixing system

KemTak-M

Self-adhesive disc on flexible magnetic backing. Will mount directly onto magnetic disc.

flexible magnetic backing

KemTak-S

Self-adhesive disc on 1mm thick metal backing. Will mount directly onto magnetic disc.

metal backing

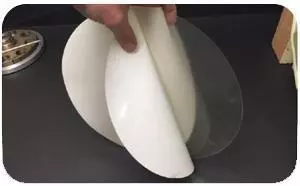

KemTak Plus

The KemTak plus has an mylar film with adhesive on both sides. Will mount directly onto magnetic disc.

mylar film
Product Ø200mm Ø250mm Ø300mm
Kemtak-S 343709 343710 343711
Kemtak-M 343706 343706 343708
Kemtak 343700 343701 343702
Kemtak Plus 343720 343721 343722

Option 3: Self adhesive grinding papers or polishing cloths can be mounted onto KMS stainless steel disc. The machine platen is fitted with a magnetic disc. This allows easy change from one consumable to another.

KMS Disc diameter Code
200mm 342560
250mm 342561
300mm 342562
380mm 342563
kms fixing system

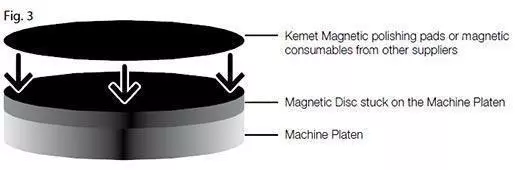

Magnetic Grinding and Polishing Consumables

Magnetic system have become the standard for most Metallographic processes. The Kemet magnetic disc system is suitable for Kemet's range of magnetic polishing pads, diamond grinding and fine grinding discs and any magnetic consumable from other suppliers

Magnetic Disc diameter Code
200mm 345770
250mm 345771
300mm 345772
magnetic fixing system
