Automatic Metallographic Abrasive Cutter Machine
The SERVOCUT 402 is an advanced universal metallographic cutting machine with a high cutting capacity, designed to cut a very wide range of materials. It has a robust, reliable design with low noise and emission levels, and its powerful 7.5 kW cutting motor ensures fast, efficient cutting of even the hardest and most complex samples. Precise motor-driven axis controls are complemented by an ergonomic proportional joystick, which offers smooth and accurate positioning in the X, Y and Z axes. Automatic models add advanced software and programmable HMI touch screen controls, which increase productivity and sample consistency while minimising operator intervention.
The large cutting table (550×483 mm) allows very large samples to be clamped, and variable cut-off wheel speed via a frequency converter is standard on all models. For operator comfort, the joystick controls all axes for easy and fast positioning, and two-hand operation provides maximum safety. The sliding door and side openings allow easy handling, while the 7” coloured HMI touch screen and user-friendly software make it simple to view and control every step, with up to 99 cutting programs that can be saved.
Advanced cutting methods, including Rapid Pulse Cutting, Instafeed and Table Oscillation Cutting, are offered as standard. A belt protection system also improves safety by stopping the cutting motor immediately if the cut-off wheel becomes stuck during cutting.

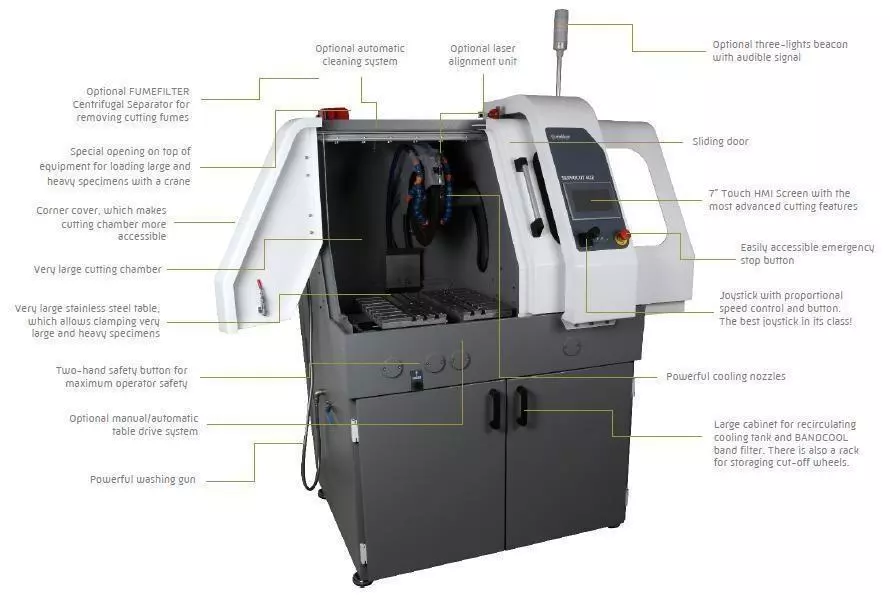

- Large cutting capacity: 550×484 mm stainless steel table, supports wheels up to Ø400 mm, cuts cylindrical specimens up to Ø150 mm. Optional laser alignment for precise positioning.
- Powerful motor: 7.5 kW cutting motor with wheel speed adjustable from 600 to 2400 RPM. Overload and belt protection systems add durability and safety.
- Cooling and filtration: Four adjustable nozzles (two on each side of the wheel), high-flow pumps to prevent burning, and a 135 L recirculating coolant tank that fits inside the cabinet. Optional level sensor alerts the operator when fluid is low.
- Instafeed (auto feedrate) cutting: Continuously adjusts feedrate to motor load, giving the fastest cut without burning the specimen or overloading the wheel.
- Joystick cutting: Manual cutting without programming, with adjustable feed speed and control of both Z and Y axes. Maximum speed can be limited from the touch panel.
- Advanced cutting methods: Optional Diagonal, Step, Segment and Combined cutting for large, hard or complex specimens.
- Rapid pulse cutting: Rapid back-and-forth movement of the table or wheel reduces contact time and lets coolant circulate, so very hard, heat-sensitive specimens stay cool and cut faster.
- Table oscillating cutting: The table oscillates while the wheel descends, cutting contact area by up to 50%, which lowers motor load and heat on hard, large or heat-sensitive samples.
- Combined cutting: Z-axis chop cutting followed by Y-axis table-feed to handle specimens too large for a single cut.
- Touch screen and joystick operation: 7” color HMI touch screen where cutting parameters (wheel speed, feedrate, travel, modes, starting position) can be saved under program numbers. The joystick positions the wheel and table in X, Y and Z.
- Automatic cleaning unit (optional): Two spiral water nozzles clean the chamber, with cleaning time set from the HMI menu.
- Fume filter and mist removal unit (optional): Collects, filters and condenses fume and vapor, preventing heavy smoke in the chamber and mist on the glass.
Automatic Operation
SERVOCUT 402 automatic models have advanced techniques and software with programmable HMI touch screen controls increasing the productivity, sample consistency and operator comfort.
Cutting Methods
Chop cutting ( Z-axis ) and Table feed cutting ( Y-axis ) combined with pulse cutting in automatic models is standard.
Optional Cutting Methods:
Diagonal Cut - for increased cutting capacity.
Step Cut - for extra hard materials
Segment Cut - for difficult workpieces
Multi-Slice Cutting:
The optional automatic x-table allows programmable plane parallel sectioning. Slices of equal thickness with number of slices as well as programming slices of different thickness is possible.
Cutting Parameters:
The preselection of the cutting force level as well as the setting of cutting feed rate (0.02 - 5mm/sec) is possible from the touch screen LCD. The feed rate is automatically adjusted, if needed reduced, resulting in perfect cuts and eliminating sample and machine damage. Pulse cutting mode is a standard feature in all automatic models for cutting extra hard specimens. Optional speed regulating unit is available to adjust the cut-off wheel speed between 600-3200 rpm.
Programmable Return Positions
SERVOCUT 402 has 3 different stop modes: Stay at the end of cutting: Stops when the specimen has been cut through. Back to starting point: Stops when it has returned to its starting point. Back to reference point: Stops when the ultimate reset point in all axes has been reached.
Database
A library of 99 different cutting programs with related specimen name or number can be saved with all cutting parameters which can be recalled at anytime. Data with cutting consumables is also listed for easy selection.
Clamping Devices

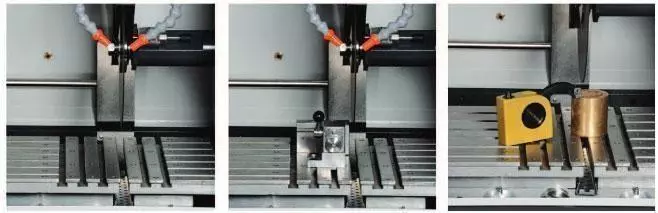

Many sample preparations applications require the sectioning of a specimen from a small or irregularly shaped sample or component part. The small size or irregular sample shape can create positioning and clamping difficulties for the operator. To overcome these difficulties, Kemet offers a number of special clamping devices for use with SERVOCUT abrasive cutters. Cut-off machines are equipped with stainless T - slot clamping tables. All clamping devices are made of stainless steel and can be attached to the cutters T - slot beds in seconds for fast and positive clamping of parts having virtually any configuration.

Cooling System
A closed loop recirculating cooling unit is a recommended option for the cutting machines. The cutting surface is cooled by spray nozzles whose water jets hit both the cutting wheel and the specimen. This provides an efficient cooling of the sample and prevents the overheating of the surface structure.
For cutting materials which generate a lot of swarf or for higher volume usage, we recommend “ Band filter Unit ” which is optionally available. It is environmentally friendly filtering the coolant and depositing the swarf in a separate container for easy disposal.
AutoClean
Cleaning & Maintenance is an important job and can be time-consuming. The AutoClean function provides a thorough cleaning of the entire cutting chamber. The AutoClean function reduces operator effort, saves time and lowers maintenance while improving overall operation and accuracy of the instrument. The cleaning gun which is mounted externally for easy access can be used for cleaning the remained residual on horizontal surfaces.

Large cutting chamber with various clamping devices
| Model | SERVOCUT 402-AA | SERVOCUT 402-AA-AX |
|---|---|---|
| Chop Cutting, Z Axis | Automatic | Automatic |
| Table Feed Cutting, Y Axis | Automatic | Automatic |
| Parallel Cutting, X Axis | - | Automatic |
| HMI Touch Screen, (inch) | 7" | 7" |
| Step;Segment;Diagonal Cut | Optional | Optional |
| Rapid Pulse Cutting | Yes | Yes |
| Smart Feed Control | Yes | Yes |
| Max. wheel Diameter, (mm) | Ø 400 | Ø 400 |
| Max. Cutting Capacity (mm) | Ø150 | Ø150 |
| Max. Cutting Capacity # (mm) | 85 x 350 | 85 x 350 |
| Y Axis Travel, (mm) | 300 | 300 |
| X Axis Travel, (mm) | - | 150 |
| Z Axis Travel, (mm) | 255 | 255 |
| T-Slot table dimension, mm (WxD) | 550 x 484 | (446 + 150) x 484 |
| T-Slot dimension, (mm) | 12 | 12 |
| Cutting Power kW (S1) | 7.5 | 7.5 |
| Wheel Speed, rpm | 600-3200 | 600-3200 |
| Cutting Feedrate, (µm/s) | 20-5000 | 20-5000 |
| Size, WxDxH, (cm) | 114 x 112 x 169 | 114 x 112 x 169 |
| Weight, (kgs) | 600 | 600 |
| Recirculation Cooling Unit, (lt) | 135 | 135 |
