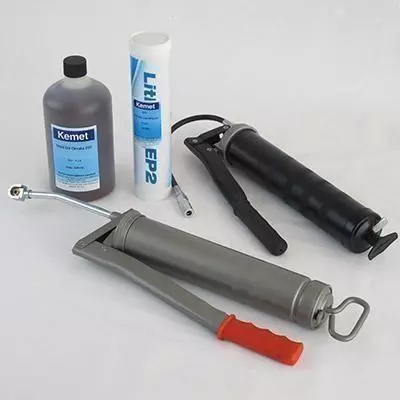

Kemet Lapping Machine Maintenance Kit
This Kit is used for the general maintenance of the Kemet 36 (and larger) Diamond Lapping machines and will aid the ‘General Maintenance procedures’ found in the manuals.
The Kit comprises of:1 Litre of Gearbox oil
1 EP2 Grease cartridge
1 Grease gun (compatible with the grease cartridge above)
1 Oil gun with end fitting compatible with the male fitting found on the Lapping machine.
Lube Point: Gearbox. Check the gearbox oil level and top up as required. A sight gauge and pressure lubrication points are sited on the left hand side.
Lubricant: Shell Omala 220 gear lube (1) with the oil gun (4)
Lube Point: Gearbox bottom bearing, the grease point is located adjacent to the oil sight gauge.
Lubricant: Two shots of grease EP2 (2) or equivalent with the grease gun (3)
Interval: Two Monthly

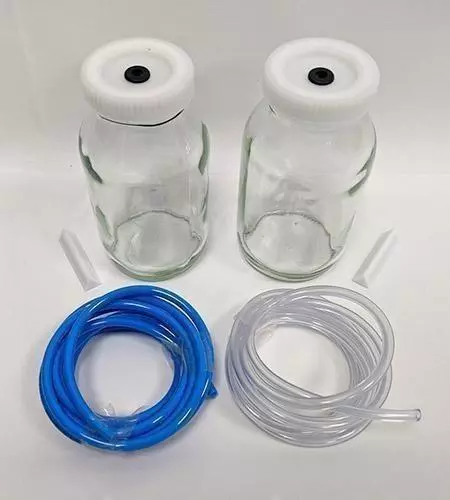

Electronic Dispenser Service Kit
Kemet have developed a service kit for the electronic dispenser to allow hassle free maintenance. The kit comprises of:
2 x Glass jar bottles with caps and 2 x stirrer magnets (for liquid diamond)
2 x Glass jars with caps (for lubricating fluid)
2 x 1m of clear 6mm tubing for liquid diamond and lubricating fluid
2 x 1m of blue 6mm tubing to connect the electronic dispenser to the air supply
Product Code: 362530
