Back Burr Cutter and Path for Deburring after Drilling
In addition to the ceramic brushes, Xebec also offer a range of Back Burr Cutters specifically for deburring front and back of drilled or tapped holes. These are supplied with a custom made tool path so there is no additional programming needed by the user; co-ordinates are supplied along with the tools for your specific application. Thanks to this custom made path, the cutter cuts into a 3D curved edge with the optimal cutting angle ensuring no secondary burrs are generated. The tool life is dramatically extended by continuously shifting the contact point of the cutting edge. In tests these tools have been proven to cut machining times by up to 90%.
- Micro-grain cemented carbide: Sharp and long lasting
- Highly heat-resistant AITiCrN coating: Support materials from non-ferrous (e.g. aluminum) to difficult-to cut materials (e.g. titanium and inconel)
- Helical blade: Cleaner cutting edge and prevents secondary burrs

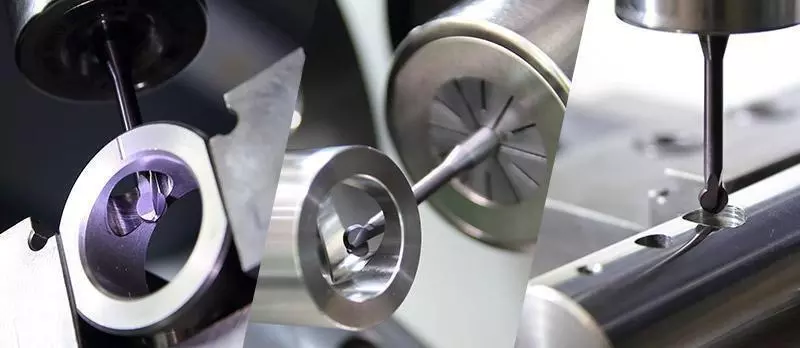

Spherical deburring cutter and custom-made tool path
The combination of the spherical deburring cutter and the custom-made tool path enables hole deburring on a 3D curved edge in your CNC machine. High-speed and excellent quality deburring is achieved while maximizing the tool life. The tool path data can be used as soon as it has been installed on a CNC program, saving your time to make your own program.
Super high-speed machining
Cycle time is reduced because of single edge-contouring operation (5 to 10 times faster than conventional tools).

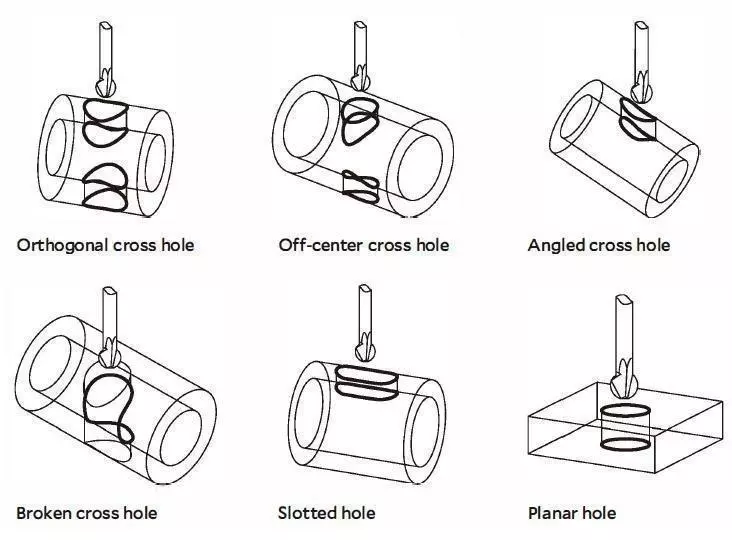

Applicable to various edge shapes
1 size of a Cutter supports various edges in different sizes and shapes. The cycle time is shortened by minimizing the number of tools used.
High quality
Uniform edge shape thanks to an optimal tool path. Inhibits secondary burrs by calculating optimal cutting angles
Before
After
Long tool life

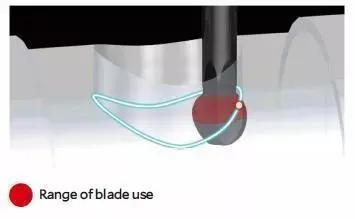

Using the entire cutting blade by constantly shifting its contact point achieves longer tool life.
XEBEC Back Burr Cutter and Path™
Applicable equipment
Machine with 3-axis simultaneous control is required.(Machining center, Combined lathe, Lathe (with milling function) or Automatic lathe)
Target burr size
Burr root thickness of 0.2mm or less (Burrs are bent with a fingernail)
Regular type

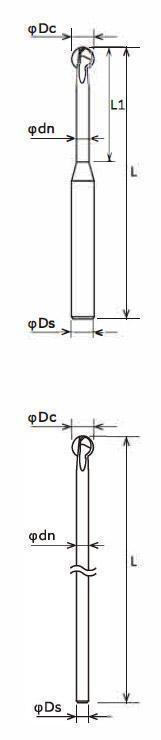

| Product code | Cutter diameter (Dc) (mm) | Cutter radius (R) (mm) | Neck diameter (dn) (mm) | Shank diameter (Ds) (mm) | Length under the neck L1 (mm) | Overall length (L) (mm) | Number of blades |
|---|---|---|---|---|---|---|---|
| XC-08-A | 0.8 | 0.4 | 0.48 | 3 | 5 | 60 | 2 |
| XC-13-A | 1.3 | 0.65 | 0.78 | 3 | 8 | 60 | 2 |
| XC-18-A | 1.8 | 0.9 | 1.1 | 3 | 10 | 60 | 2 |
| XC-23-A | 2.3 | 1.15 | 1.4 | 3 | 12.5 | 70 | 2 |
| XC-28-A | 2.8 | 1.4 | 1.7 | 4 | 15 | 70 | 2 |
| XC-33-A | 3.3 | 1.65 | 2.0 | 4 | 17.5 | 70 | 2 |
| XC-38-A | 3.8 | 1.9 | 2.4 | 4 | 20 | 70 | 2 |
| XC-48-A | 4.8 | 2.4 | 3.0 | 6 | 25 | 70 | 2 |
| XC-58-A | 5.8 | 2.9 | 3.5 | 6 | 30 | 70 | 2 |
| XC-78-A | 7.8 | 3.9 | 4.7 | 8 | 40 | 100 | 3 |
| XC-9B-A | 9.8 | 4.9 | 5.9 | 10 | 50 | 120 | 3 |
Straight type
| Product code | Cutter diameter (Dc) (mm) | Cutter radius (R) (mm) | Neck diameter (dn) (mm) | Shank diameter (Ds) (mm) | Overall length (L) (mm) | Number of blades |
|---|---|---|---|---|---|---|
| XC-18-B | 1.8 | 0.9 | 1.1 | 1.1 | 50 | 2 |
| XC-23-B | 2.3 | 1.15 | 1.4 | 1.4 | 60 | 2 |
| XC-28-B | 2.8 | 1.4 | 1.7 | 1.7 | 70 | 2 |
| XC-33-B | 3.3 | 1.65 | 2.0 | 2.0 | 80 | 2 |
| XC-38-B | 3.8 | 1.9 | 2.4 | 2.4 | 85 | 2 |
| XC-48-B | 4.8 | 2.4 | 3.0 | 3.0 | 105 | 2 |
| XC-58-B | 5.8 | 2.9 | 3.5 | 3.5 | 120 | 2 |
