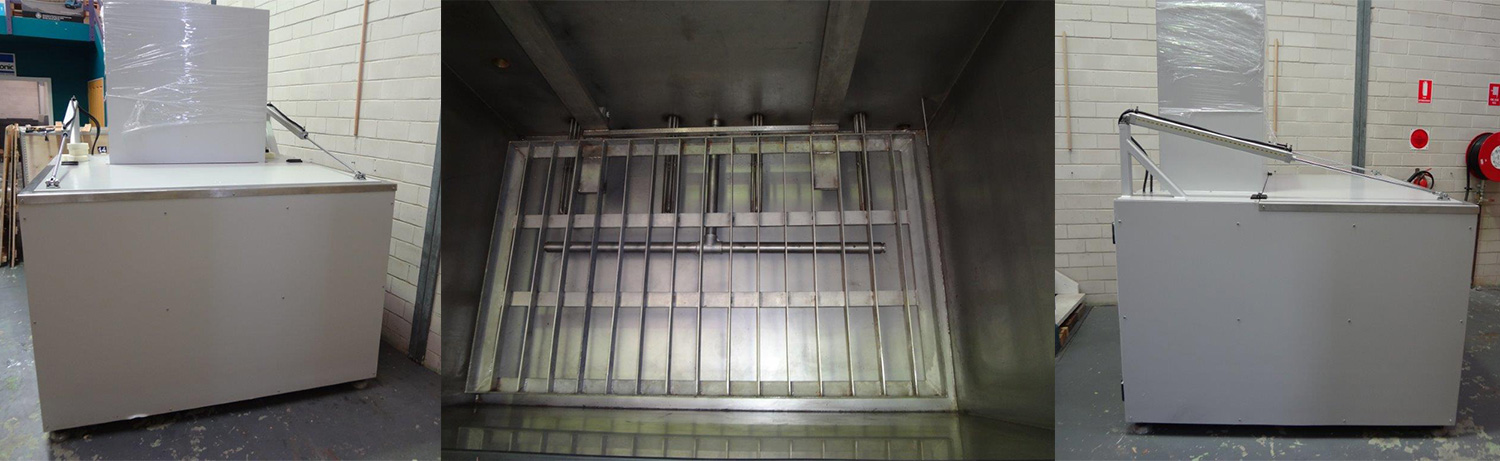

Pneumatic Driven Platform Agitation Part Washing Machine (Hot Tank)
This system is ideally suited for a wide range of industries, including transportation, metalworking, printing, and reconditioning. It offers significant advantages by utilising the movement of parts within the liquid, which substantially reduces washing time and enhances cleaning efficiency. Importantly, this improvement in efficiency does not negatively impact the lifespan of the cleaning media. The system's agitation machinery is engineered specifically to remove oils, metal chips, and particulates from a diverse array of components. It accomplishes this by using water-based detergents and environmentally safe solvent chemistries, ensuring effective and eco-friendly cleaning. Furthermore, all operations and processes are precisely managed by a sophisticated PLC (Programmable Logic Controller) control unit, ensuring reliable and automated control over the entire system. This advanced control mechanism enhances operational consistency and minimises the potential for errors, making the system highly efficient and user-friendly.
Machine Cost: AU$ 35,000 + Shipping
PAW1000 Technical Specification | |
---|---|
Loading Capacity | 1.000 Kg |
Platform | 1300x900 mm. |
Inside Tank Material | AISI 316 Stainless Steel |
Solution Volume | 1900 lt. |
Solution Depth | 1100 mm. |
Electric | 380 V/50 Hz/3 Ph |
Control | PLC |
Filter | 2 Hp Circulation Pump,500 Micron Filter |
Platform Movement | By Pneumatic Pistons |
Platform Movement | 700 mm. (Depends On The Work Pieces Height) |
Cycle | 0-40 Per Minute Short And Long Stroke (Adjustable) |
Temperature Ranges | 20-90 °C |
Temperature Control | Digital |
Control Voltage | 24 Volt Dc. |
Electric Heating System | 48 kW; 380 V/3 Phase/50 Hz. |
Required Air Pressure | 6-7 Bar |
Agitation | Fast Or Slow Agitation Speed |
Cover | Lifting And Closing By Pneumatic Pistons |
