Gate, Globe, Check, Safety and Control Valves Maintenance and Reconditioning

Model FL-H - Suitable for valves with flat seats ø 50 - 200 mm (2” - 8”)

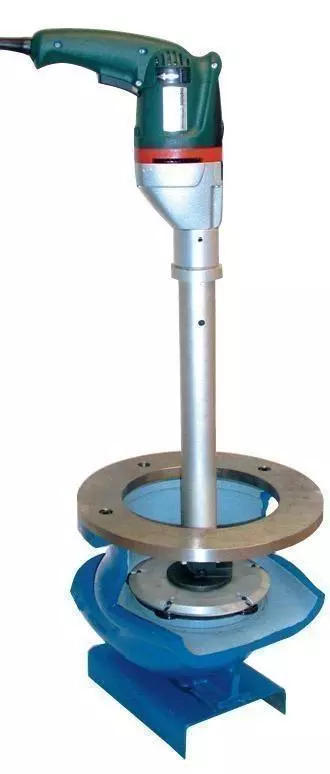

The FL-H model is designed for valves with flat seats ranging in size from ø 50 - 200 mm (2” - 8”). It is an ideal solution for grinding gate, globe, check, safety and control valves, and comes equipped with individually driven grinding heads to ensure absolute flatness of the valve seats.

The FL-H model is available with a compressed air drive unit that operates at a pressure of 6 - 7 bar, as well as an electric battery drive unit or electric 110/220V drive unit. All drive units are reversible and have variable grinding speed, providing users with greater flexibility in their grinding operations.

With the FL-H model, users can easily switch between grinding gate and globe valves, and only three sizes of abrasive discs are required to cover the full seat range. Self-adhesive grinding discs make it quick and easy to attach to the grinding heads, and the machine is supplied with rough, medium, and fine grinding discs. Additional self-adhesive grinding discs ranging from 40 to 1000 grit are also available.

For added convenience, the FL-H model comes with a heavy-duty carrying and storage case that houses the complete machine and all necessary accessories. Grinding heads for angled seats are available, and for enhanced performance, diamond grinding discs are also available. Adjustable guiding plates for extra stability are also available.

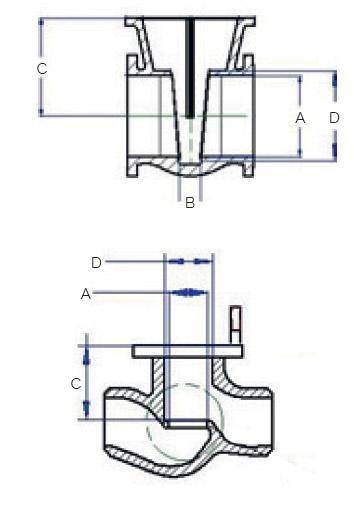

Possible range for Model FL-H:

A: 50 - 200 mm (2” - 8”)
B: 39 mm (1.56”) min
C: 100mm (4”) min
600mm (24”) standard
1000 mm (60”) max (option)
D: 80 - 257 mm (3.20” - 10,8”)
Carrying case: 750 x 615 x 135mm (30” x 24” x 5”)
Total weight: 17 kg (37.5 lb)

model fl-h range

valve grinding gate globe check safety and control valves
