Clamping Devices for Servocut and Metacut

Many sample preparation applications require the sectioning of a specimen from a small or irregularly shaped sample or component part. The small size or irregular sample shape can create positioning and clamping difficulties for the operator. To overcome these difficulties, we offer a number of special clamping devices for use with abrasive cutters. Cut-off machines are equipped with stainless T-slot clamping tables. All clamping devices are made of stainless steel and can be attached to the cutters T-slot beds in seconds for fast and positive clamping of parts having virtually any configuration.

Convenient clamping for your samples

  • Quick acting clamping vise for standard application
  • Jaw block sets for sensitive and round samples
  • Vertical clamping options with various V-shoes and chain spanner for irregular and large samples
  • Rotating vise and angular cutting fixture
  • X-axis tables for cutting plane parallel sections

Quick Acting Clamping Devices

  • Suitable for various applications
  • Made of stainless steel
  • Easy to exchange
  • Cam-lock mechanism for fast and safe clamping
  • Optional block sets for sensitive and round specimens

Quick Acting Clamping Devices

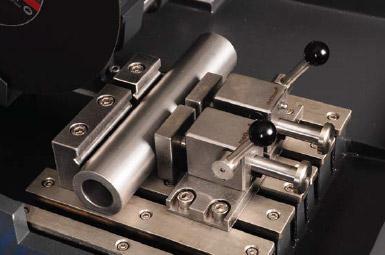

Quick Acting Clamping Vice Assembly, Right

Quick Acting Clamping Vice Assembly, Right

GR 0121 for SERVOCUT-500
GR 0029 for SERVOCUT-400, METACUT-350
GR 0172 for SERVOCUT-300
GR 0012 for METACUT-250

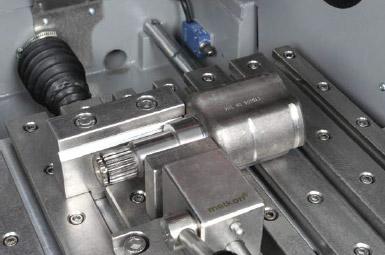

Quick Acting Clamping Vice Assembly, Left

Quick Acting Clamping Vice Assembly, Left

GR 0121 for SERVOCUT-500
GR 0029 for SERVOCUT-400, METACUT-350
GR 0172 for SERVOCUT-300
GR 0012 for METACUT-250

Prism Jaw Block Set for round specimens

Prism Jaw Block Set for round specimens

GR 0031 attachment of GR 0122 & GR0030
GR 0010 attachment of GR 0170, GR 0013 & GR 0548

Rubber coated jaw block set for sensitive specimens

Rubber coated jaw block set for sensitive specimens

GR 0032 attachment of GR 0122 & GR0030
GR 0011 attachment of GR 0170 GR0013 & GR 0548

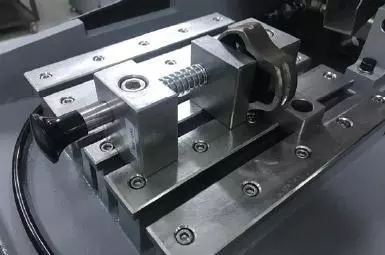

Compact Vice Ass. Spring Loaded

Compact Vice Ass. Spring Loaded

GR 0154 for SERVOCUT-400, METACUT-350
GR 0151 for SERVOCUT-300, METACUT-250

Adjustable mechanical stop

Adjustable mechanical stop

GR 0150 attachment of QAC vice rear jaw

Vertical Clamping Devices

  • Most widely used clamping tools for irregular, large and flat samples
  • Very easy and quick clamping with various optional V-shoes
  • Optional height blocks for taller samples

Vertical Clamping Devices

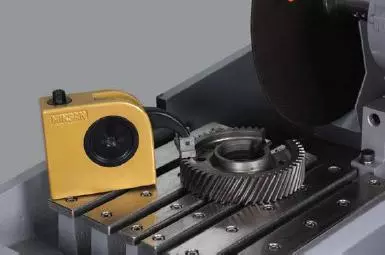

Vertical clamping device with clamping shoe

Vertical clamping device with clamping shoe

15 02 for SERVOCUT-500, SERVOCUT-400 & METACUT-350
15 01 for SERVOCUT-300, METACUT-250
15 05 for MICRACUT-200 & GEOCUT

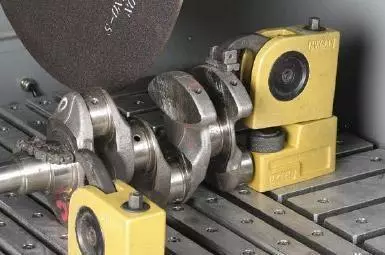

Height Block

Height Block

15 04 attachment of 15 02
15 03 attachment of 15 01

Traverse V-Shoe

Traverse V-Shoe

YM 1059 Attachment of 15 01 & 15 02

Longitudinal V-Shoe

Longitudinal V-Shoe

YM 1058 Attachment of 15 01 & 15 02

Special Clamping Devices

Depending on the specific requirements, custom clamping devices can be designed and manufactured.

special clamping devices

Other Clamping Devices

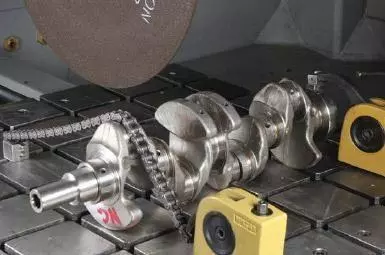

Chain Spanner Set with Anchor Block

Chain Spanner Set with Anchor Block

GR 0033 for SERVOCUT - 500, 400 & METACUT - 350

Rotating Vice

Rotating Vice

GR 0034 for SERVOCUT - 500,400 & 300

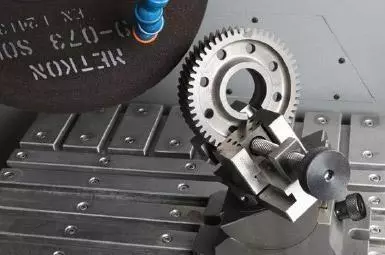

Angular Cutting Fixture

Angular Cutting Fixture

GR 1230 for SERVOCUT - 400 & 300, METACUT - 350

X-Axis tables for cutting plane parallel sections

Optional manual or motorized X-axis tables can be mounted on the T-slotted tables in order to make plane parallel cuts without re-clamping the sample. For motorized X-axis tables, the thickness of the uniform slices is set from instrument's main panel digitally.

Manual Cutting Table for X-Axis

Manual Cutting Table for X-Axis

GR 0207 for METACUT 350
GR 0197 for SERVOCUT M400
GR 0195 for SERVOCUT M300

Motorized Cutting Table for X-Axis

Motorized Cutting Table for X-Axis

GR 0255 for SERVOCUT AA500
GR 0198 for SERVOCUT A&AA400
GR 0196 for SERVOCUT A300
