Monochromatic Light Source

Produces clear flatness readings when used with Kemet Optical Flats. The compact designed Light is easily transportable and uses a sodium long-life sodium light source. Supplied with a flatness reading interpretation chart. Kemet offer monochromatic lights incorporating bench stands to hold large optical flats.

  • Detachable power lead with on / off switch at the side
  • 220V model (50 or 60 Hz) with UK plug – Kemet Code 361201
  • 230V model (50 or 60 Hz) with European plug – Kemet Code 361313
  • 110V model (50 or 60 Hz) with USA plug – Kemet Code 361211
  • Supplied with compliance certificate and instructions
  • CE marked

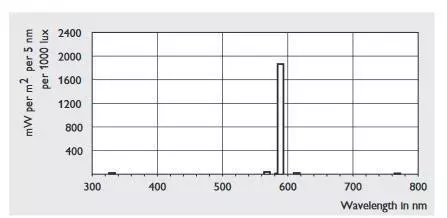

Our sodium bulbs have a wavelength of 590nm.

sodium bulb wavelength

Kemet Monochromatic Light source

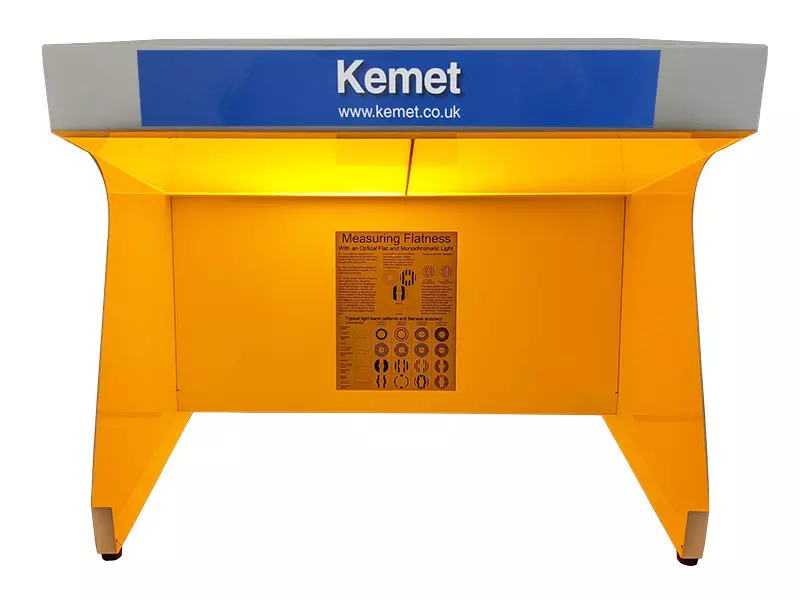

Large Monochromatic Light

Kemet large Monochromatic Light units, designed for use with optical flats up to 500mm in diameter, allows for precise measurement of surface flatness to within millionths of an inch. Utilising a sodium long-life light tube, these self-contained units provide a glare-free light source. When used in conjunction with Optical Flats, contrasting light and dark bands are easily observed on most reflective or semi-reflective surfaces. Dimensions: H 460mm x W 550mm x D 400mm, work area depth 280mm

  • 230V model (50 or 60 Hz) with UK plug - Kemet Code 361201A
  • 110V model (50 or 60 Hz) with UK plug - Kemet Code 361211A
  • 110V model (50 or 60 Hz) with USA plug - Kemet Code 363044A
  • Supplied with compliance certificate and instructions
  • CE marked

large Monochromatic Light source

Flatness Inspection Using a Kemet Monochromatic Light

1. It is critical that both the component and optical flat are perfectly clean before inspection. Any amount of contamination, regardless how small, will affect the measurement. 1 sodium light band is equal to 0.29 microns, so any particles or smears on the surface of either the component or the optical flat will affect the measurement.

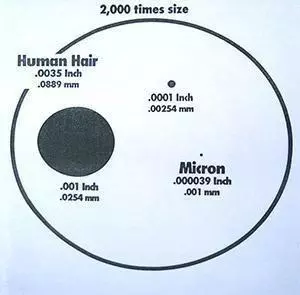

This illustration shows how a human hair compares in size to a 1 micron particle. You will not see particles that are 1 micron in size, but if present, these can affect the flatness reading by as much as 3 light bands. This highlights the need for perfectly clean components and optical flats. When cleaning the optical flats, use a lens grade cleaning tissue and either Isopropyl Alcohol or Kemet CO42 cleaning fluid. Harsh tissues will cause scratches on the optical flat.

2. The Kemet Monochromatic Light should be turned on at the start of every shift. The sodium bulb will take up to 15 minutes before it is ready to be used for inspection. The light should be orange in colour when ready.

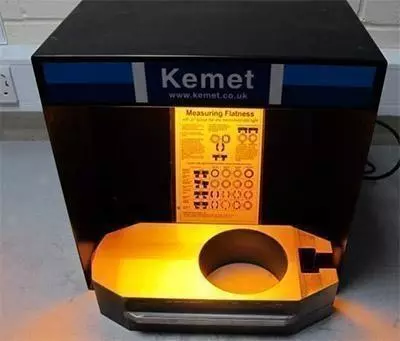

3. Position the part so that it is under the monochromatic light ensuring that the entire surface to be measured is within range of the light.

4. Place the optical flat over the area that is to be measured. Do not slide the optical flat as this will generate scratches. Apply light finger pressure to the optical flat to remove as much air as possible from between the component and the optical flat. This will usually make the light bands easier to read.

The black line on the monochromatic light lamp cover should be reflected on the surface of the optical flat. The number of light bands that this black line passes through will give the flatness reading if the bands are straight or curved.

human hair compared in size to a 1 micron particle

Kemet Monochromatic Light source

Surface geometry 1 Light band
2 Light bands
3 Light bands
9 Light bands

Convex or Concave

Surface parallel to flat
Symmetrical Pattern
optical flat convex or concave convex or concave


With concave surface band will curve in opposite direction
Non-Symmetrical Pattern
optical flat convex convex


Convex or Concave
Symmetrical Pattern
optical flat cylindrical cylindrical

Saddle Shaped

Symmetrical Pattern
optical flat saddle shaped saddle shaped

The chart above shows typical flatness readings. These black lines simulate the black line on the Monochromatic light lamp cover. This is used only when the light band patterns are curved. For other light band patterns refer to the chart above. The same chart is supplied with the Kemet Monochromatic Light.

5. Once the flatness measurement has been completed, lift (do not slide) the optical flat off the component and return it to its protective box.

Replacement Bulbs for Mononlight

Make sure you order the correct replacement bulb!

Monolight Version Replacement Bulb Description Product Code
new monolight monolight bulb 35W bulb (32cm) 362607

kemet ISO 9001

BSI number Q05919

Over 85 years of service to industry
