Ultrasonic Cleaning Silicone - Kemet

Ultrasonic Cleaning Silicone - Case Study

Component: Silicone Moulding
Material: Silicone
Contamination prior to cleaning: Lipstick residue

Process for Cleaning Silicone Mould:

Stage 1- Galvex 20.02: The tank was filled with tap water and then diluted with a 3% concentration of Galvex 20.02 cleaning detergent. The tank was allowed to degas and reach the required temperature before cleaning. GALVEX 20.02 is a lightly alkaline liquid, used for the removal of polishing compounds in ultrasonic or soaking processes. It is compatible with all metals & contains no harmful components. The batch was cleaned in the Galvex 20.02 with ultrasonic cavitation for a 10-minute cycle.

Ultrasonic Cleaner Cleaning Agent Temperature(s) Concentration
1. Kemet 30 benchtop cleaner Galvex 20.02 60°C 3%
2. Versa Genius+ 120 air bubble agitation Rinse tank Tap water 22°C 100%
3. Versa Genius+ 120 hot air dryer N/A 70°C N/A

Note: All stages were allowed to reach the required temperature and degas before cleaning.

Stage 2 – Tap water rinse: Next, the parts were rinsed in tap water for 2 minutes to remove all detergent residue. The auto-purge feature was used during the cycle, this floods the tank with fresh tap water and any residue carried over and maintains high water quality. Air bubble agitation was used; this is a controllable Jacuzzi effective rinsing from the base of the tank, this ensures optimal rinsing and residue removal.

Stage 3 – Dry: Lastly, the part was dried at 70°C for 10 minutes in a Versa genius+ hot air dryer.

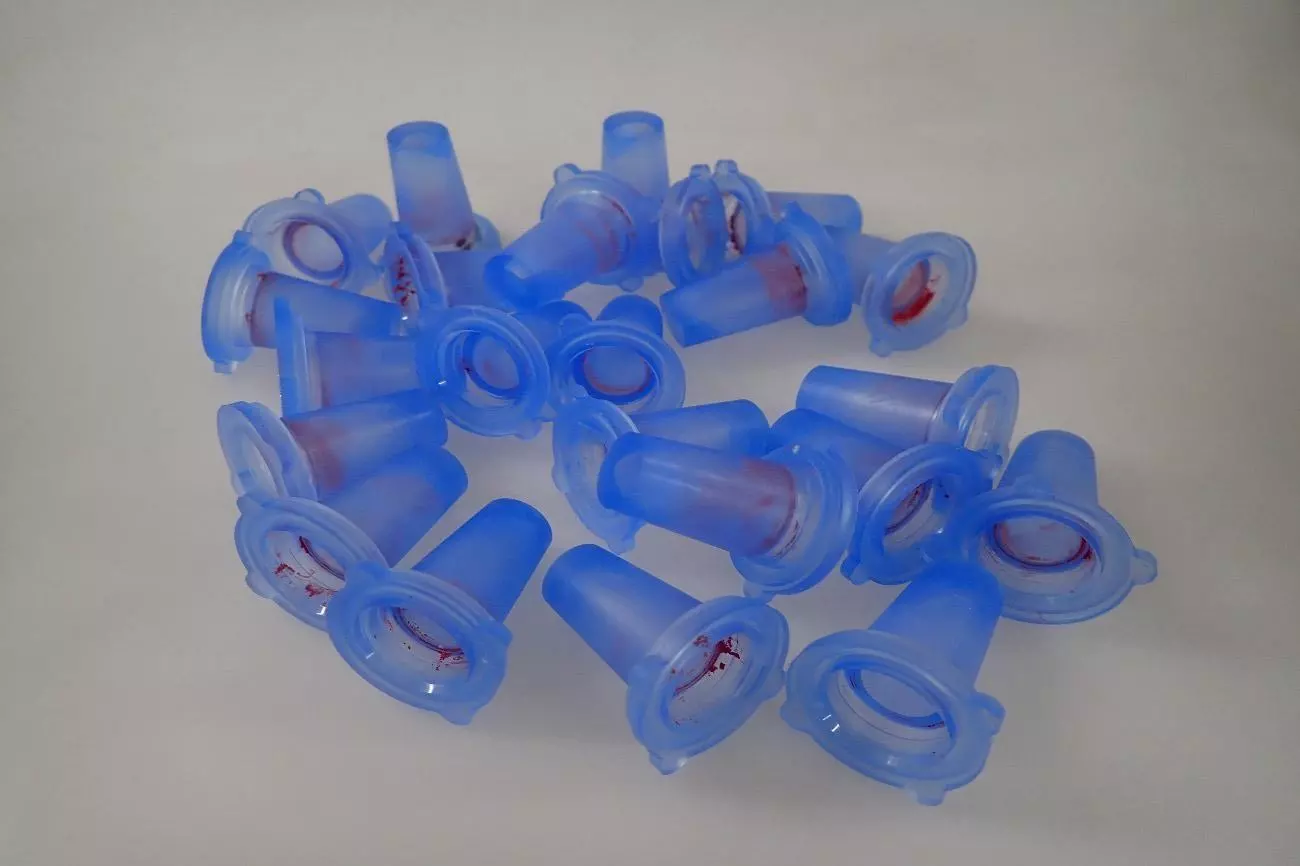

Before cleaning Silicone

Before cleaning Silicone

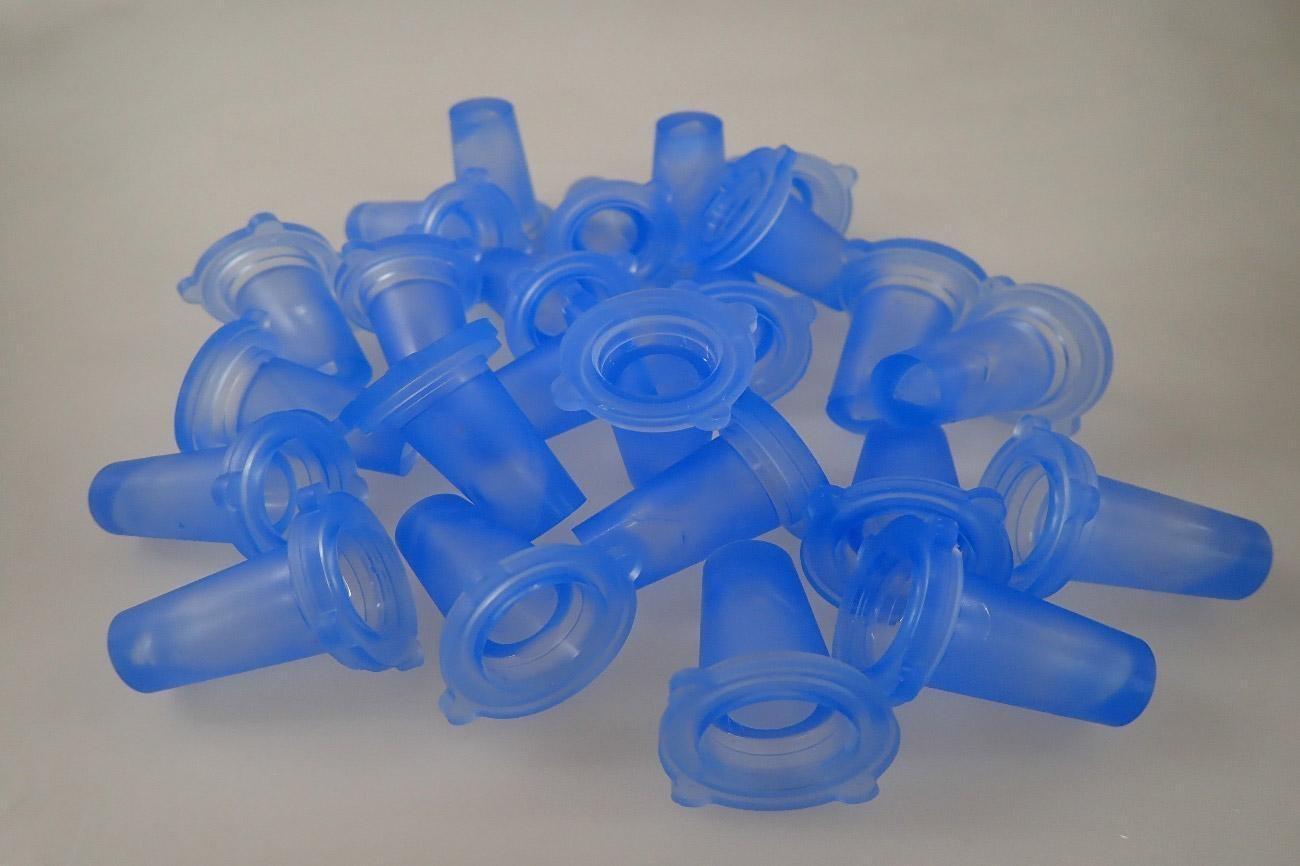

After cleaning Silicone

After cleaning Silicone
