Cleaning Aluminium Deposits, Staining & Burn Marks - Case Study
Customers Criteria: Remove all aluminium
Component: Extrusion Tooling
Material: Tool Steel
Contamination prior to cleaning: Aluminium deposit, staining burn marks
Total number off: 1
Number off per run: 1
| Ultrasonic Cleaner | Cleaning Agent | Temperature(s) | Concentration |
|---|---|---|---|
| Versa 120 Ultrasonic | H14 | 60°C | 15% |
| Versa 120 Ultrasonic | De-ionised water | 50°C | 100% |
| Versa 120 Dryer | N/A | 65°C | 5 Minutes |
Process for removing aluminium deposit and burn marks
The part was placed in the basket and set for a cycle time of 10 minutes. As soon as the part is submerged in the bath you can see the H14 attacking and breaking down the aluminium. The part was left in the ultrasonic tank until all the aluminium had been removed which took 18 hours. This cycle time can be reduced by increasing the H14 concentration. The concentration was not increased through out the test.
% Satisfactorily Cleaned: 100%.

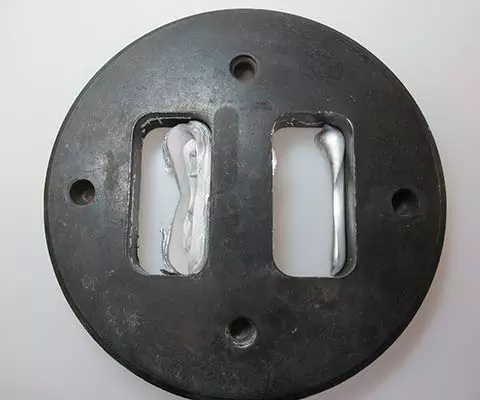

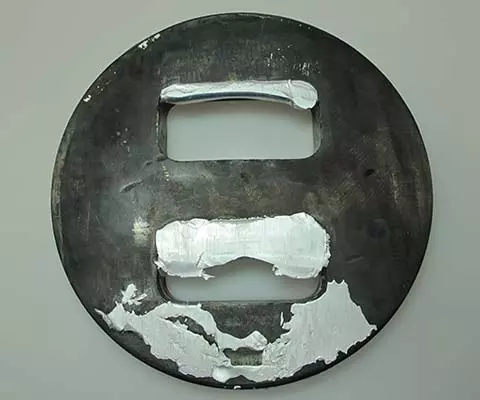

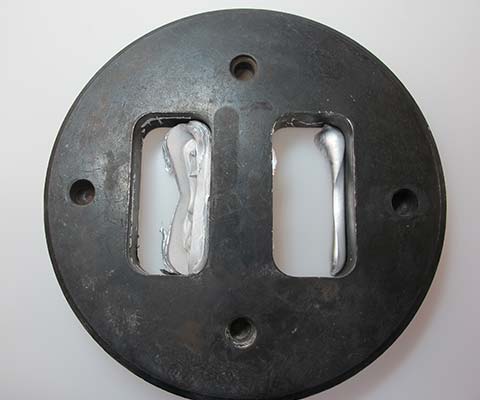

Before Removing Aluminium Deposit & Burn Marks

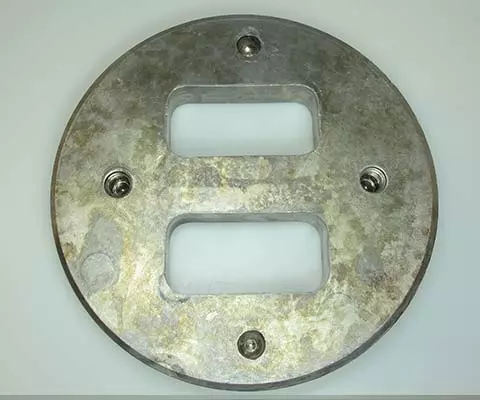

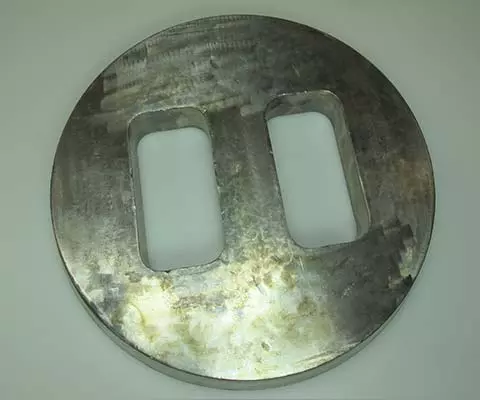

After Removing Aluminium Deposit & Burn Marks
Customers Criteria: Remove staining, brighten
Component: Cup mould
Material: Brass
Contamination prior to cleaning: Staining, burn marks, dull
Total number off: 1
Number off per run: 1
| Ultrasonic Cleaner | Cleaning Agent | Temperature(s) | Concentration |
|---|---|---|---|
| Kemet 12 | Rodastel 30 | 45°C | 3% |
| Kemet 12 | De-ionised water | 50°C | 100% |
| Versa 120 Dryer | N/A | 65°C | 5 Minutes |
Process for removing staining and burn marks
The mould was placed into the basket and then submerged into the tank and set for a cycle time of 10 minutes. After the wash cycle the part was placed into the rinse tank to neutralise and rinse any left on contamination. The rinse cycle time is 3 minutes. The part was then placed into the versa 120 hot air dryer set at 65°C for 5 minutes.
% Satisfactorily Cleaned: 100%.

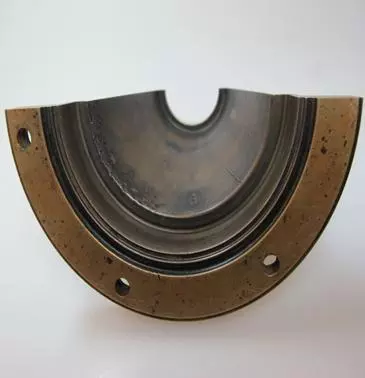

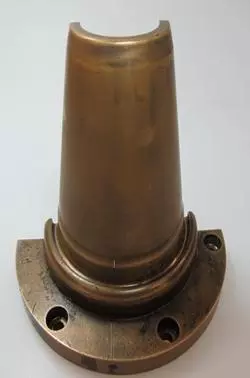

Before Removing Staining & Burn Marks

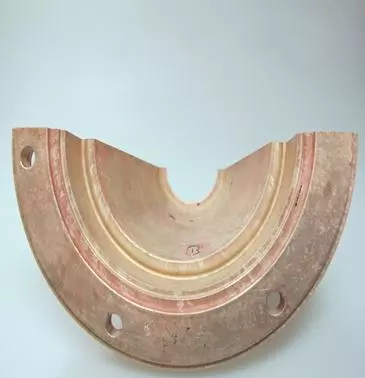

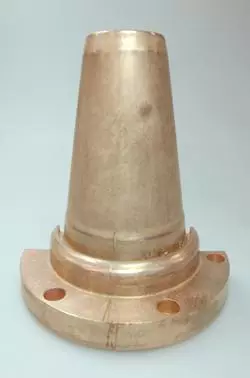

After Removing Staining & Burn Marks
