Electer E-Max portable Grinder / Polisher

A precision power hand tool system with a wide range of attachments suitable for grinding, smoothing, polishing and deburring. Features in the standard set include:

• A lightweight and compact Motor with speed range 10,000-35,000 rpm.
• Slim easy grip handpiece with quick release collet control lever
• Versatile control unit with handle and connections for two handpieces
• Full variable speed control with forward and reverse

The set comprises of:

• Standard Type motor NK-351 complete with motor cord
• Standard type attachment IH-300.
• Control Unit NE129
• Collet Chuck dia 3.0mm (CHH-3.0) & dia 2.35mm (CHH-2.35) - 1pc
• Spanner (7 x 5.1) - 1pc
• Mounted Grindstone - 2pc


ELECTER E-Max Motors

Emax Standard Motor (NK-351)

Excellent combination of high speed, lightweight, small diameter and high torque. Speed range 1000 - 35,000 rpm.

Emax Torque Motor (NK-261)

Combines the best of both high speed and high torque. It is perfect for applications requiring large burrs. Speed range 1000 - 27,000 rpm.

Emax Super Torque Motor (NK-151)

High power type combines medium speed and super high torque. Perfect for use with 6mm shank or large diameter burrs. Also perfect for low speed cutting, grinding and drilling. Speed range 1000 - 13,000 rpm.

Attachments for"ELECTER-GX" (Electrically - Pneumatically Driven)

Standard Type Attachment (IH-300)

Perfectly designed for powerful and delicate cutting and grinding, and made it slim and light weight for comfortable gripping.
Weight 62g

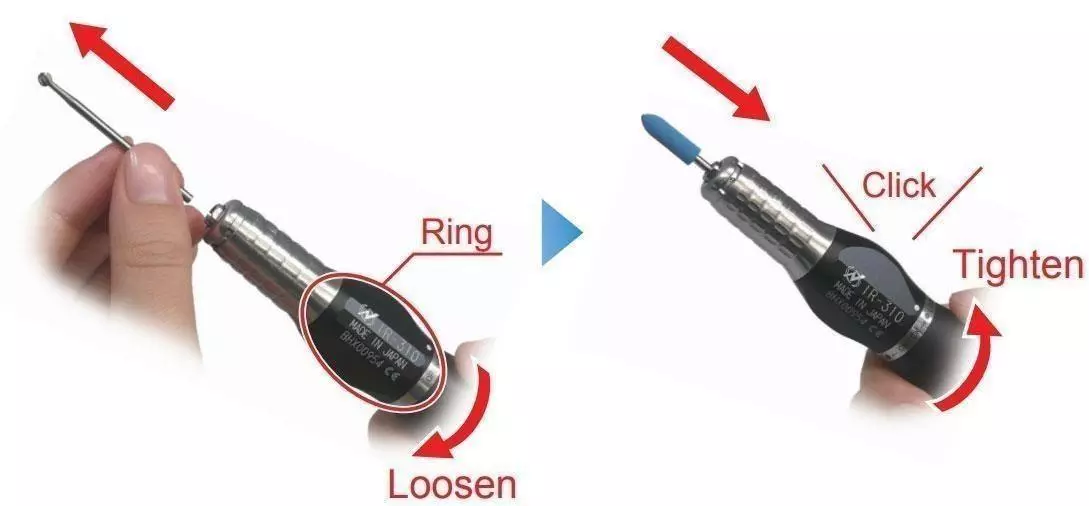

Just turn the lever to exchange the bur
Wrench is not required to exchange the chuck
Collet Chuck: 3.0mm dia. (CHH-3.0), 2.35mm dia. (CHH-2.35)

Right Angled Attachment (IC-300)

Small 90 deg angle attachment with 3.0mm dia collet chuck. Most suitable for polishing flat surface corners and internal surfaces of pipes. Other collet sizes available.

45 Deg Angle Attachment (KC-300)

Ideal for the work at 45 Deg angle, especially corners and deep concaves.
Use the motor in reverse rotation for clockwise rotation.
Speed Reduction Rate: 3/4
Weight: 45g
Collet Chuck:
Standard Size: 3.0mm dia. (CHC-3.0)
Special Size: CHC-__ 1.6, 2.0, 2.35, 3.175mm dia.

Torque Type Attachment HG-200

The resistance produced by cutting and grinding is absorbed by special rubber grip to eliminate slipping.
Weight:210g
Collet Chuck:
Standard Size: 6.0mm dia. (CHG-6.0)
Special Size: 0.8-3.0mm dia. every 0.1mm and 2.35mm dia., 3.175, 3.5, 4.0, 4.5, 5.0, 5.5, 6.35mm dia.

Straight Attachment for Deep Hole Grinding MH-300

This unique slim body makes it ideal for light cutting grinding the bottom surface of deep ribs or holes.
Weight: 133g
Just turn the lever to exchange the bur.
Wrench is not required to exchange the chuck.
Collet Chuck: 3.0mm dia. (CHH-3.0)
Special size: CHH-__ (0.8mm-3.0mm dia. every 0.1mm and 2.35mm dia., 3.175mm dia.)

Parts for ELECTER E-Max

Speed Reducer (RG-01)

The speed is reduced to 1/4 but the torque is multiplied by 4 times.
Weight: 68g

Extension Joint (CN-01)

This is a joint to be connected between a motor and an attachment to extend the total length of the attachment that is difficult to reach by itself.
Weight: 83g

Espert 500 Torque Set

• Highest power in class
• Power Output ­ 250W
• Speed range: 1000 ­ 50,000 rpm
• Microprocessor controlled for optimal motor control

Memory speed function Set comes complete with:

• Control unit (NE96)
• Compact Motor Handpiece (ENK50T-HR)
• Collet Chuck dia 3.0mm (CHH 3.0) & dia 2.35mm (CHH-2.35) ­ 1 pc
• Attachment holder ­ 1 pc
• Attachment stand ­ 1 pc
• Spanner ( 7 x 5.1) ­ 1 pc
• Pin Spanner ­ 1 pc
• L- Spanner ­ 1 pc

Espert 500 Torque Type Motor (ENK-500T)

Speed range: 1000 ­ 50,000 rpm
Output range: 200 W
Weight: 160 g (with 1.5m cord)

Lever Type Attachment (EHR-500)

Standard Accessories:
Collet Chuck 3.0mm dia (CHH-3.0), 2.35mm dia (CHH-2.35) 1 pc. each
Spanner (7x5.1) 1 pc.

90deg Angle Attachment (EIC-300)

90deg Angle Attchment with 3.0mm collet chuck is the smallest attachment in the world and suitable for the polishing on flat surface with rubber pad paper disk, work of corner and the grinding of the inside of pipe.

Standard Accessories:
Collet Chuck 3.0mm dia (CHC-3.0) 1 pc.
Collet Chuck Wrench (K-231)

45deg Angle Attachment (EKC-300)

45deg Angle Attachment is suitable for the work with angles matched to the attachment specially for corners, deep cave, etc.

Standard Accessories:
Collet Chuck 3.0mm dia (CHC-3.0) 1 pc.
Collet Chuck Wrench (K-231)

Fine Belt Sander (EBS-100)

The angle of belt section is adjustable freely.
Width of Belt: 8, 6, 4mm
Belt Speed: 940m/min. (max.)

Standard Accesories:
8, 6, 4mm Belts (3 different Grits) 2 pcs. each
Allen Wrench: 3mm 1 pc.

1/4 Speed Reducer (ERG-01B)

1/4 Speed Reducer ERG-01B multiplies torque by 4 times, mounted between the motor and the attchment.
Weight: 65g

Standard Accessories:
Speed Reduction Ratio 1/4

IMPULSE Series

Airline Kit - Automatic Lube Device (AL-807)

The Unit contributes for smooth rotation of Impulse System air motor for a long period of time. Just connect directly to the compressed air line for steady air flow and automatic lubrication to air tool. The Device are featured with compactness and lightweight, motor rack and handle for esy carriage.

IMPULSE (NSP-601) 60,000rpm

Specifically shaped to allow transfer sensitive finger touch to the head tool. The stainless steel head and anodised alluminium alloy motor housing provide the weight and balance suitable for better handling.

Specification:
Speed: 60,000rpm
Weight: 165g
Air Consumption: 160NL/min.
Drive Air Pressure: 4-6kg/cm2
Hose Length: 1.5m

Standard Accessories:
Collet Chuck 3.0mm dia 1 pc.
Grinding Stone with axis 1 pc.
Wrench 1 set

IMPULSE (NA45-400) 40,000rpm

Chuck may be repaced: Standard 3.0mm dia, Optional 3.17, 2.35, 1.6mm dia

Specification:
Speed: 45,000rpm
Weight: 210g
Air Consumption: 160NL/min.
Drive Air Pressure: 4-6kg/cm2
Hose Length: 1.5m

Standard Accessories:
Collet Chuck 3.0mm dia 1 pc.
Grinding Stone with axis 1 pc.
Wrench 1 set

IMPULSE (NA45-230) 23,000rpm

Replacing mandrel of standard Grinding Stone Top-Cut by collet chuck for 3mm dia, regular grinding stone with 3.0mm dia axis can be used.
Chuck may be repaced: Standard 3.0mm dia, Optional 3.17, 2.35, 1.6mm dia
Suitable for surface grinding with cup-shaped grindstone.

Specification:
Speed: 23,000rpm
Weight:190g
Air Consumption: 160NL/min.
Drive Air Pressure: 4-6kg/cm2
Hose Length: 1.5m

Standard Accessories:
Collet Chuck 3.0mm dia 1 pc.
Special Grinding Stone with axis 1 pc.
Top-Cut Stone 1pc.
Rubber Pad 1 pc.
Paper File Discs 8 pcs.
Spanners 1 set

IMPULSE (NA90-230) 23,000rpm

Replacing mandrel of standard Grinding Stone Top-Cut by collet chuck for 3mm dia, regular grinding stone with 3.0mm dia axis can be used.
Chuck may be repaced: Standard 3.0mm dia, Optional 3.17, 2.35, 1.6mm dia
Suitable for surface grinding with cup-shaped grindstone.

Specification:
Speed: 23,000rpm
Weight:190g
Air Consumption: 160NL/min.
Drive Air Pressure: 4-6kg/cm2
Hose Length: 1.5m

Standard Accessories:
Collet Chuck 3.0mm dia 1 pc.
Special Grinding Stone with axis 1 pc.
Top-Cut Stone 1pc.
Rubber Pad 1 pc.
Paper File Discs 8 pcs.
Spanners 1 set

The NSK Sheenus Neo is the ideal tool for precision die polishing and burr removal

• Effective polishing in difficult areas such as ribs, corners, side walls and complex shapes
• Adjustable frequency with a digital power display which eliminates over polishing
• Sensitive control to tool tip to ensure professional results
• Ergonomically comfortable and light for effortless work over long periods
• Homing function allows for frequency adjustments to optimise for tool material and length

Control unit

• Maximum output: 45W.
• Oscillation Frequency: 22.5 kHz
• Oscillation Stroke: Max 40 micron
• Frequency Control: Homing type
• Input power source: AC 120/230V 50-60 Hz
• Power consumption: 100 VA
• Dimensions: W225 x D195 x H97mm
• Weight: 1.7 Kg

Handpiece

• Oscillator: PZT piezoelectric type
• Dimensions: Ø 16 (Max Ø 28 ) x L 134mm
