Precision Cutters

MICRACUT precision cutters are used for precise and deformation-free cutting of “Metals, Ceramics, Electronic Components, Crystals, Composites, Biomaterials, Sintered Carbides, Minerals, etc.” MICRACUT has its place in virtually any metallurgical, geological, electronics, research, biomedical or industrial laboratory. Capable of cutting most materials such as, brittle or ductile metals, hard or soft metals, composites, ceramics, rocks, biomaterials, laminates, etc. They are designed for cutting all types of materials with minimal structural deformation.

precision cutter for precise and deformation-free cutting

The MICRACUT precision cutters have the highest safety standards. The magnetic safety switch does not allow the motor to be started unless transparent hood is closed. If transparent hood is opened during cutting, the motor immediately stops automatically. Easily accessed and operated emergency stop button ensures immediate shut down.

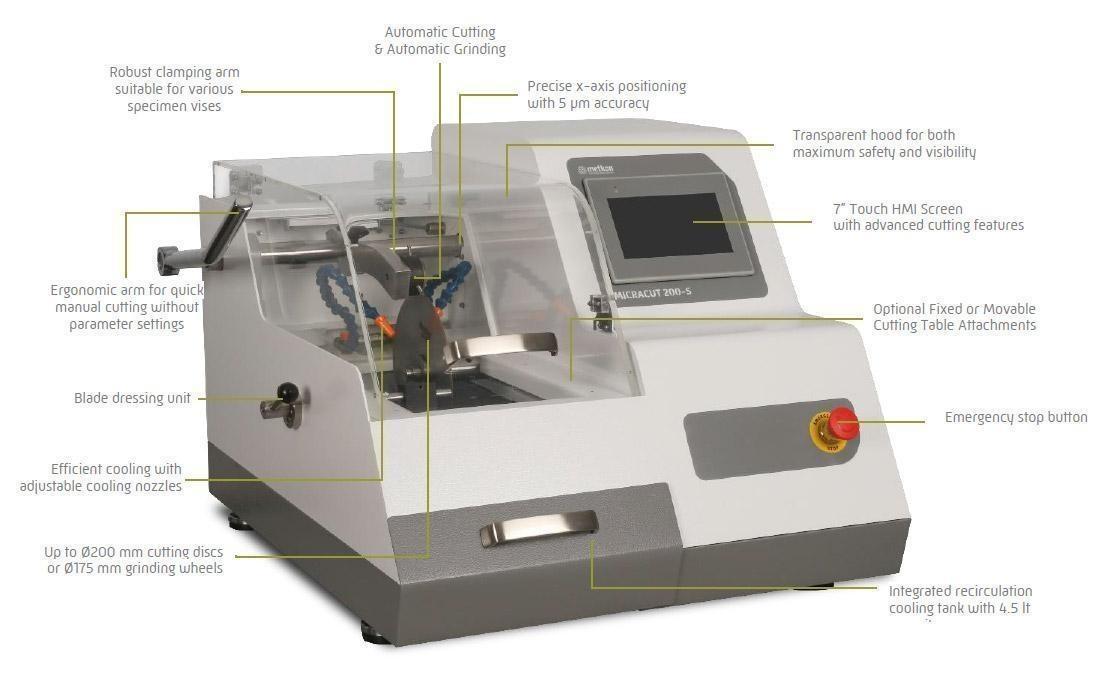

MICRACUT 200-S has special design for universal use. Two different types of cutting tables can be mounted on the cutting chamber for different types of applications. The fixed cutting table attachment is used for cutting flat PCB boards or small geological samples by hand. The movable cutting table attachment is used for manual table feed cutting of PCB boards, sheet metals, small metallic or non-metallic samples.

MICRACUT 200-S has motorized sample movement in Z-axis that makes possible to benefit from extra advanced cutting methods such as "Automatic Z-Axis Cutting, Hybrid Cutting, Rapid Pulse Cutting, Instafeed Cutting, Semi-Automatic Serial Parallel Cutting, Semi-Automatic Precise Grinding". At the end of the cut, the motor automatically stops and an audible signal notifies the operator. It is also possible to make manual cutting by the handle on the left side of machine.

The Hybrid Cutting is a standard feature on the MICRACUT 200-S. If the sample consists of more than one layer and each layer needs to be cut at different speeds, the Hybrid Cutting feature will fully meet this need. Thanks to the Hybrid Cutting feature, up to 5 different cutting parameters (feed rate, disc speed, pulse, force, distance, etc.) can be set within the same cutting process. When the disc comes to the next cutting layer, the cutting process continues with the cutting parameters belonging to that layer without interrupting the cutting process.

Semi-Automatic Precise Grinding - A diamond cup grinding wheel can be attached to the MICRACUT 200-S. In this way, the layer desired to be examined can be exposed by removing chips from the sample very precisely. Just like in parallel slicing, the operator is informed on the LCD screen how far the specimen will be advanced in the X-axis between the grinding steps. Unlike parallel slicing, how many passes to be grinded in each step can be adjusted and the device performs these passes automatically. Unlike the cutting process, the feed rate can be adjusted between 0.5 - 50 mm / sec during grinding.

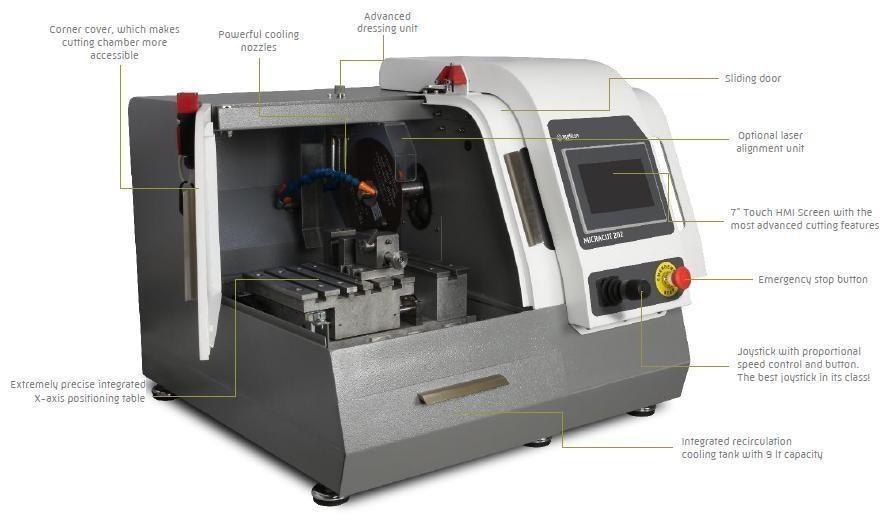

MICRACUT 202 is built on precisely manufactured heavy duty aluminium frame providing stable and vibration resistant base for precision components and linear bearings. The cutting compartment is fully enclosed. The front sliding door and side cover can be completely opened for easy access and handling to all sides. Powerful cutting motor (1.1 kW) has variable cut-off wheel speeds from 300 up to 4000 rpm allowing both high speed and low speed cutting. Wide range of clamping tools can be used on the T-slotted moving table. The optional X - axis table with motorized drive mechanism positions the specimen with high positioning accuracy. Optional Vacuum sample holder provides precision grinding on MICRACUT 202 with pre-defined amount of material removal can be carried out by using diamond cup wheel. Optional stand can accommodate all MICRACUT specimen vices with dovetail plates. The height of the cut-off wheel (Z-axis) can be adjusted automatically. Diamond, CBN and abrasive cut-off wheels up to 200 mm diameter can be used. By height adjustment (Z-axis), the wheel wear is easily compensated. Different flange sets are available which can be selected according to the requirement of maximum cutting capacity or max. wheel support. Various clamping tools and accessories are available for different specimen geometry and applications.

MICRACUT 202 precision cutters has advanced techniques and software with programmable HMI touch screen controls increasing the productivity, sample consistency and minimize operator intervention. Control of X/Y/Z Axis can also be performed with the ergonomic proportional Joystick that offers smooth and precise positioning.

The structural integrity of the sample is maintained through MICRACUT’s design and operation. Additionally, low kerf-loss and sample holding versatility makes the MICRACUT an essential part of the modern day laboratory. The cut surface is ready for microscopic examination with minimal polishing.

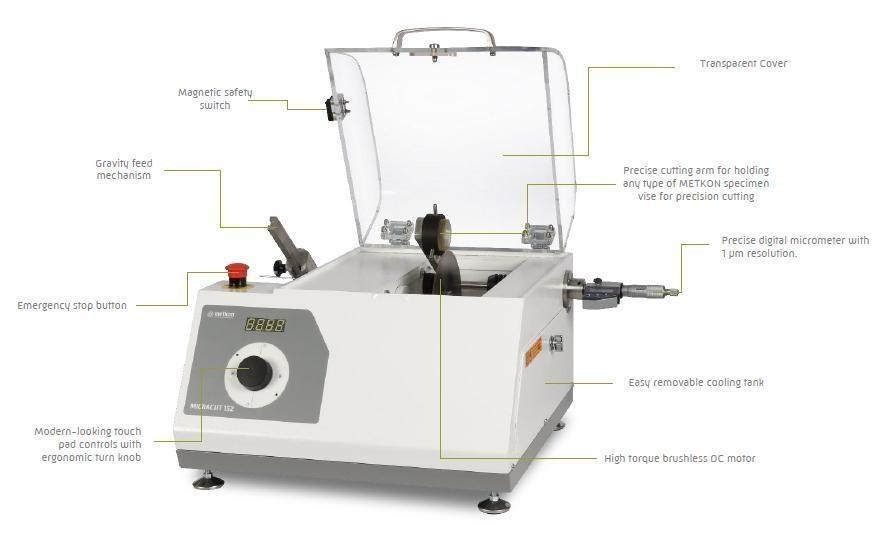

MICRACUT 152 accommodates diamond and abrasive wheels up to 175 mm (7”) diameter and the speed range is between 0 and 1000 rpm. The gravity feed loading design minimizes sample deformation. The sliding weight arm with counterweight allows precise force application. The digital micrometer enables the operator to set the cutting width with a resolution of 1 micron. The digital micrometer is interchangeable and the customer can mount other types of micrometers if and whenever required. The coolant tray is removable from the front of the instrument for easy cleaning.

MICRACUT 152’s cutting chamber is fully enclosed by a transparent hood. Blade dresser is optionally available. At the end of the cut, an audible signal notifies the operator.

Optional Cutting Table Attachment is available for manual cutting of extra flat large specimens and PCB’s.

Model Micracut 200-S
Cut-off Wheel Diameter, (mm) up to Ø200 mm
Cutting Capacity, Ø (mm) Ø75 mm
Sample Movement in Z-Axis Motorized
Sample Movement in X-Axis Manual
X-Axis Positioning Range, (mm) 0-50 mm
X-Axis Positioning Accuracy, (μm) 5 μm
Cutting Feed Speed, (μm/s) 5 - 10000 μm/s
Cutting Motor Power, (kW) (S1) 0.55 kW
Disc Speed, (RPM) 100 – 5000 RPM
Control Panel 7" HMI Touch Screen
Program Capacity 99 Program Memory
Cutting Modes Automatic Cutting in Z-Axis
Manual Cutting in Z-Axis
Manual Table-Feed Cutting in Y-Axis
Pulse Cutting Yes (Rapid Pulse Cutting)
Automatic Feedrate Yes (Instafeed Cutting)
Multi-Section Cutting Yes (Hybrid Cutting)
Parallel Cutting, X-Axis Yes (Semi-Automatic)
Precise Grinding Feature Yes (Manual/Semi-Automatic)
Grinding Wheel Diameter, (mm) Ø175 mm
Grinding Feed Speed, (μm/s) 500 - 50000 μm/s
Cooling Unit, (lt) 4.5 lt (integrated)
Illumination LED
Dressing During Cutting Operation Yes
Motor Drive System Direct Drive
Dimensions, WxDxH, (mm) 640 x 732 x 529h mm
Weight 90 kgs
Model Micracut 202
Max Disc Dia., (mm) 200
Cutting Capacity, ø (mm) 75
Cutting Capacity, # (mm) 50x175
Positioning Range x-Axis, (mm) 60 (Optional)
Positioning Range y-Axis, (mm) 210
Positioning Range z-Axis, (mm) 45
T- Table Dimensionsı, mm (WxD) 196x190
T-Slot dimensions 12
Cutting Power, (S1) 1.1 kW
Disc Speed, (RPM) 300 – 4000
Motor Drive System Direct Drive
Laser Optional
Table Feed Speed, (µm/s) 20 - 1500
Dressing During Cutting Operation Optional
HMI Touch Screen, (inch) 7
Cooling Unit, (lt) 9 lt (integrated)
Rapid Pulse Cutting Yes
Thin Section Grinding Feature Yes
Dimensions, WxDxH, (mm) 738 x 750 x 636
Weight (kg) 150
Model Micracut 152
Cutting Capacity, ø (mm) 50
Max Disc Dia., (mm) 175
Cutting Method Gravity Feed
Power, (Watt) 100
Disc Speed, (rpm) 0-1000
Dimensions, W+(mic.)xDxH, (cm) 51 x 43 x 34
Weight, (kgs) 28
Voltage 1 ph, 230V, 50Hz. AC

Cutting Parameters:

The preselection of the cutting force level as well as the setting of cutting feed rate ((0,005-3mm/sec) is possible from the touch screen LCD. The feed rate is automatically adjusted, if needed reduced, resulting in perfect cuts and eliminating sample and machine damage.

Multi-Slice Cutting:

The optional automatic x-table allows programmable plane parallel sectioning. Slices of equal thickness with number of slices as well as programming slices of different thickness is possible.

Programmable Return Positions

MICRACUT 202 has 3 different stop modes: Stay at the end of cutting: Stops when the specimen has been cut through. Back to starting point: Stops when it has returned to its starting point. Back to reference point: Stops when the ultimate reset point in all axes has been reached.

Database

A library of 99 different cutting programs with related specimen name or number can be saved with all cutting parameters which can be recalled at anytime. Data with cutting consumables is also listed for easy selection.

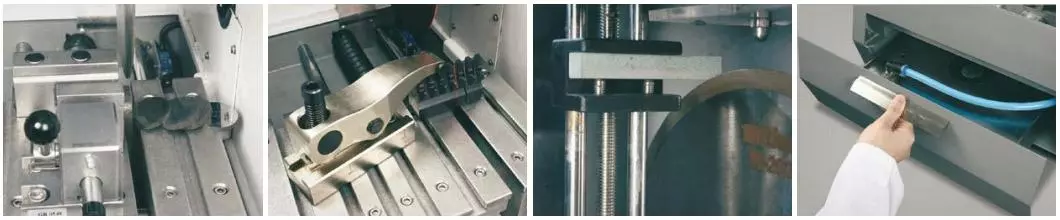

precision cutting features

Micracut Precision Cutting catalogue

Special Clamping Devices for Micracut

Flange Set Ø 75/100 mm

GR 0410
GR 0411

Universal Specimen Vice

GR 0400

Specimen Vice For Long Specimens

GR 0401

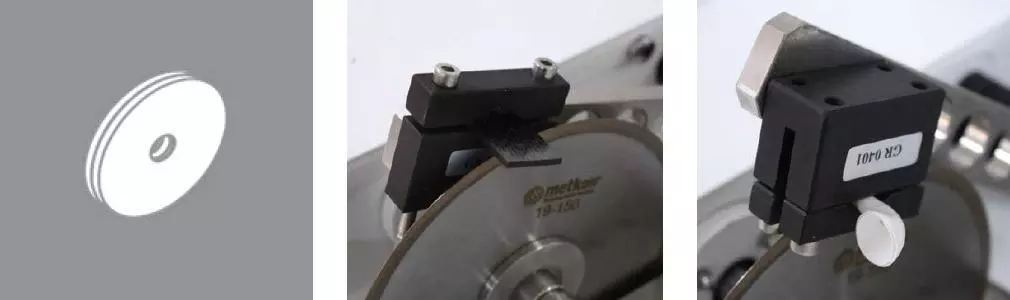

specimen vice for long specimens

Specimen Vice For Around & Mounted Specimens

GR 0402
GR 0434

Specimen Vice For Irregularly Shaped Specimen

GR 0403

Specimen Vice For Adhering Specimen

GR 0404

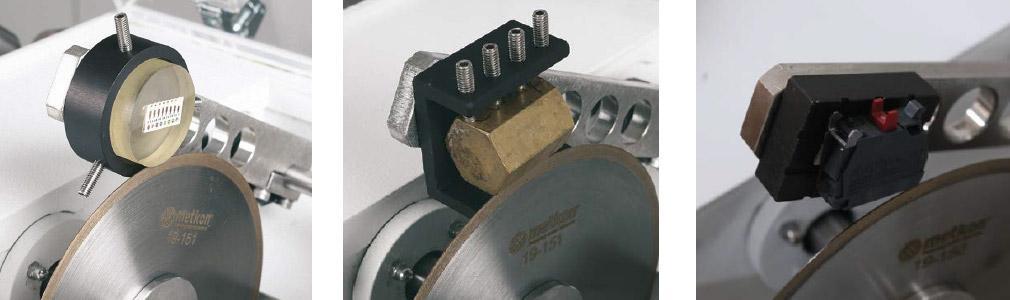

specimen vice for irregularly shaped specimen

Specimen Vice for Biomedical Samples

GR 0405

Specimen Vice (Teardrop Shape)

GR 0430 GR 0431

Fastener Vice for Longitudinal Sectioning of Screws

GR 0453

specimen vice for biomedical samples
